Step-by-step: HelloSCHISM on Azure

This guide will walk you through the process of running the tutorial HelloSCHISM model on Azure Batch.

Note

This assumes you have already set up your Azure account and have access to the Azure Batch service. If you haven’t done this yet, please refer to the Azure documentation for instructions on how to create an account and set up Batch.

Initial Setup

First, complete the Azure setup steps in Setup Azure. You should have:

  • azure_cli and azcopy command line utilities installed and configured

    • meaning you can run azcopy and az commands from the command line

    • you should be logged into your azure account

  • download and install azure_dms_batch and its conda environment

  • upload the necessary packages and libraries to your Azure batch account (see Upload Applications)

Uploading Model Input Files

Your simulation input files (e.g., mesh, forcing files, etc.) should be uploaded to the Azure Batch storage account. This is typically done using the azcopy command line utility. The File Transfer Commands section has basic info on azcopy commands.

For more detailed info see the Microsoft documentation.

  1. Navigate to “./modules/m1_hello_schism” in a terminal (PowerShell, Bash, etc.)

    ex:

    cd ./modules/m1_hello_schism

  2. Make sure that there is an /outputs directory inside the module directory. We include this with the module folder, so it should be there.

  3. Create a blob container within your storage account

    az storage container create --name modules --account-name <storage_account_name> --auth-mode login

  4. Now you’ll need to generate an SAS token in order to read/write/copy/etc. to and from your storage account’s blob container “modules”. See Generating SAS Links for more info on this process, but copy the Blob url link for the next step.

  5. Specify the sas variable using the url you generate in Generating SAS Links
    export sas="url.link.here"

    Be sure to include the quotation marks.

  6. Set the AZLINK variable using this formula:

    https://<storage account name>.blob.core.windows.net/<blob container name>/

    export AZLINK="https://<storage account name>.blob.core.windows.net/modules/"

    Replace <storage account name> with the name of your storage account.

  7. Now you can copy the contents of the module 1 folder into your blob container using azcopy. First, keep the –dry-run flag on so you can be sure that your files are going where you want them to go.

    azcopy copy "./" "${AZLINK}?${sas}" --exclude-regex="outputs/.*" --recursive --preserve-symlinks --dry-run

    Once you’ve checked the console output and are sure it’s going to and from the right place, you can re-run it without the –dry-run flag.

    This will copy all the files in m1_hello_schism into the modules blob container. It will also not upload any of the files in the outputs folder (because of the --exclude-regex='outputs/.*'). This is a good practice so you don’t incur extra costs for uploading and downloading large output *.nc files.

Check that your files were uploaded correctly by navigating to your storage account with either the online Azure Portal or the Azure Storage Explorer (desktop app).

You should be able to see your m1_hello_schism folder and it’s contents inside of the modules blob container.

Set up Model Run Config

You can use the azure_dms_batch package’s command line utilities to submit a job to Azure.

Much of the setup for the virtual machines, compute nodes, etc. are determined by which template you specify in your run *.yml file.

But First,you’ll need to modify HelloSCHISM/azure_yml_files/m1_hello_schism_run.yml:

  • resource_group: fill in the name of your Azure Resource Group

  • batch_account_name: fill in your Batch Account name

  • storage_account_name: fill in your Storage Account name

  • location: (at the bottom), if your Azure resources were created in a location other than “eastus” then you’ll need to specify the location here.

Some important things to note:

The run_file.yml overrides anything in your default_config.yml (ex: alma87_mvapich2_20241018/default_config.yml)

Spot Pricing Config

The above example uses “Low Priority Nodes” or “spot pricing”. You can see this by TargetDedicatedNodes in the m1_hello_schism_run.yml file.

Spot pricing works by sending your job to Spot VMs which run until there is another process that preempts your job. So this will take longer but can be much more affordable if you’re running many simulations. For HelloSCHISM you can change this to “TargetDedicatedNodes”

This means your job needs the capacity to automatically restart from the last hotstart produced by SCHISM.

This example schism.yml file uses spot pricing <https://github.com/CADWRDeltaModeling/azure_dms_batch/blob/main/sample_configs/sample_schism_spot_pricing.yml>.

This example schism.yml file uses dedicated nodes <https://github.com/CADWRDeltaModeling/azure_dms_batch/blob/main/sample_configs/sample_schism.yml>. The example yml file has many comments on each input with explanations.

Ensure Batch Quota

You’ll need to go to the Azure portal, to your batch account, and then to Settings /> Quotas.

From here you’ll want to click “Request Quota Increase”. Then you’ll do the following to get this message to “Manage Quota”.

../_images/batch_quota.png

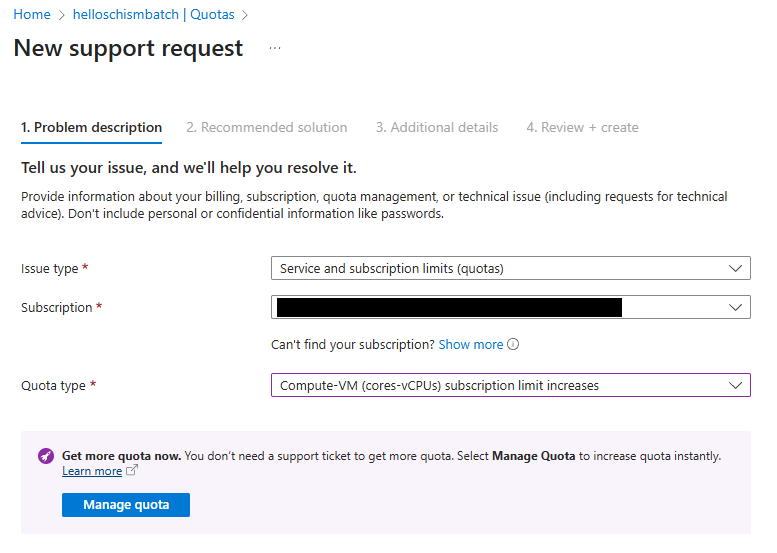

Fig. 8 Batch quota request fields to get to “Manage Quota”

From here, you’ll want to increase the quota for HBv2 Series to approximately 300. That should be enough for a HelloSCHISM tutorial run.

If your region doesn’t support HBv2 or you have any deeper issues with Azure, you may need to consult with your IT support. Anything that isn’t covered on this page is not within the scope of the HelloSCHISM or BayDeltaSCHISM tutorial realm.

Run Simulation!

Navigate to HelloSCHISM/azure_yml_files in the console, to fire a run you just need to submit the following command in a console which you have azure_cli, azcopy, and azure_dms_batch activated and which you’re logged into.

dmsbatch schism submit-job --file m1_hello_schism_run.yml
