DSM2 v82 Compiling and Packaging
This memo presents step-by-step instruction on compiling and packaging DSM2 version 8 assuming a minor (bug-fix) release.
Version
The latest DSM2 release version is 8.2.0. The first two digits of DSM2 official version; the 3rd digit is used for minor (bug-fix) releases.
git commit number is also embedded for developer's record, and could be used to check thru '-version' command.
The Git number is embedded automatically at compilation time. The
following 3 files contains relevant version info:
\dsm2\src\common\version_generate.py
\dsm2_distribute\dsm2\install\copy_hydro_qual_ptmDLL_notepad_style.bat
\dsm2_distribute\dsm2\install\DSM2setup_Script_Generate.py
*BDO is using an 'unstable trunk' branching strategy in GIT for DSM2
development.
*GIT categories: master is for major development and bug fix; branches
are usually for separate and time-consuming studies on old versions;

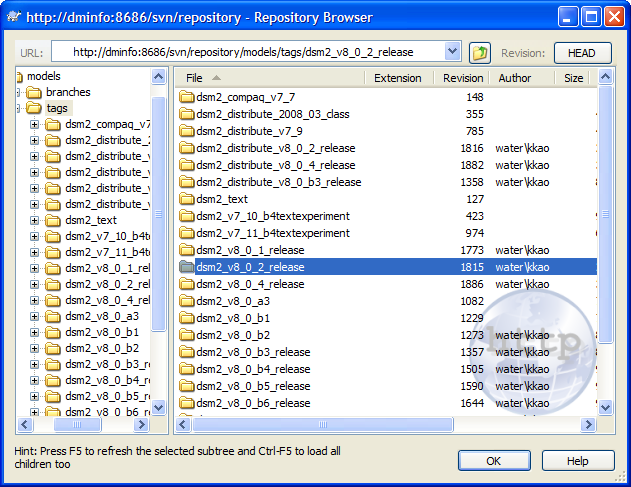

Tags are the records for all release versions.
*DSM2 version tag (the 3rd digit in the version number) is
designed to use odd number for internal use, and even number for formal
release
Checkout
Checkout DSM2 from github: https://github.com/CADWRDeltaModeling/dsm2.git
place the project in local directory, e.g. D:\dev\dsm2_master\
Check out could be conduct at command line
git clone https://github.com/CADWRDeltaModeling/dsm2.git
Or use software sourceTree (recommended for later use). Note which branch you're checking out (master by default).
Compile
Cmake is currently used to control and adapt project compilation (see details at CMake Build).
From command line, run cmake batch at the project root path. It calls cmake build of oprule, input_storage, then DSM2 sequentially.
build_all.bat
The building results are exe of hydro and qual, with dll of ptm, under path \BUILD\Release or Debug
The major part of PTM module is written in Java programming language and placed in the source code folder: \dsm2_v8_1\src\ptm. It could be build in two ways:
- ANT: the default compiling procedure is set in build.xml; open the command window and run 'ant' (build.xml as default running file) at current path. The release version of compiled application file will be automatically placed in the folder: \dsm2_v8_0\src\ptm\lib (ptm.jar)
- Eclipse: DSM2 v82 PTM Compiling with Eclipse
Libraries

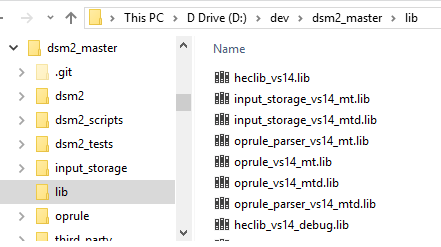

All the libraries DSM2 needs are precompiled and placed in the folder lib: input storage, oprule, and third parties
If compiling is required, refer their compile details at CMake Build.
Since third_party folder is very big and not easy to copy around, one way to share the same package (w/o increase disk occupance) is to use Windows mklink
Use admin right to open a command window and type in:
mklink /D {target location}\third_party {original location}\third_party
For internal users use this command
mklink /D third_party \cnrastore-bdo\Delta_Mod\Share\DSM2\compile_support\third_party
Debug
Cmake also built up the project Visual Studio solution, which could be used do the code debug.

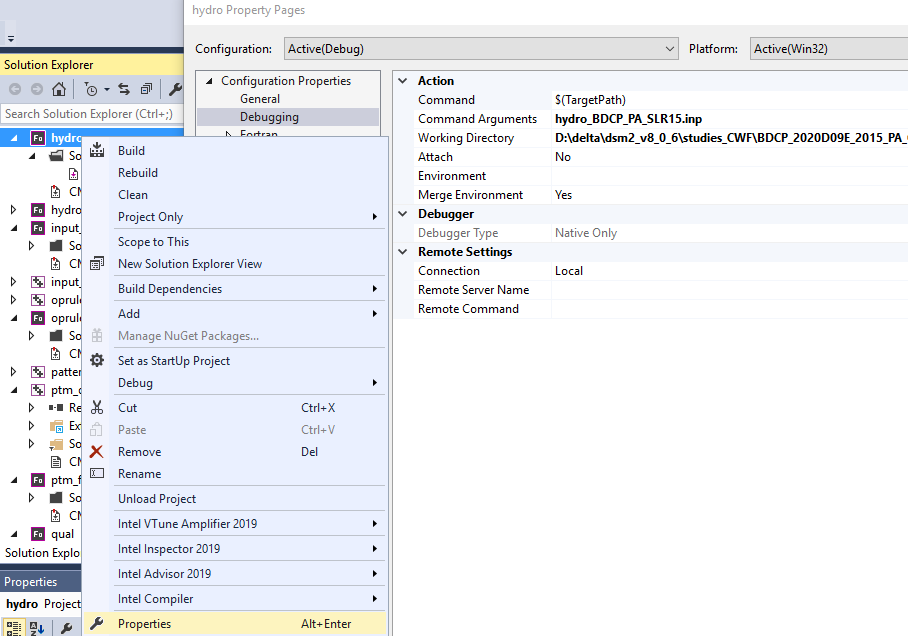

See the following example for debug setting in Visual Studio 2015.

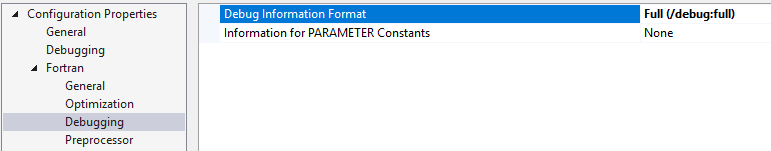

Make sure the 'debug info' is on the project you're working on (the current VS set it as off by default).
Packaging
Download from share folder and change folder name to dsm2_distribute\
under branch (e.g. master), aside with dsm2
1. Generate tutorial PDF files:
a) Delete all PDF files in "dsm2_distribute\dsm2\tutorials\pdf"
b) Run "doc2pdf.vbs" in "\dsm2_distribute\dsm2\install\ to generate PDFs from tutorial word documents.
2. Copy compiled binaries to distribution folder:
a) Check the DSM2 version and paths to the compiled binaries are correct in the batch file "copy_hydro_qual_ptmDLL_notepad_style.bat" in the folder \dsm2_distribute\dsm2\install\
Be aware of the version consistence for the 3 control files mentioned in 'DSM2 Versioning'; if not, correct them and re-compile from 6-4 in the previous section
b) Run the batch file "copy_hydro_qual_ptmDLL_notepad_style.bat".

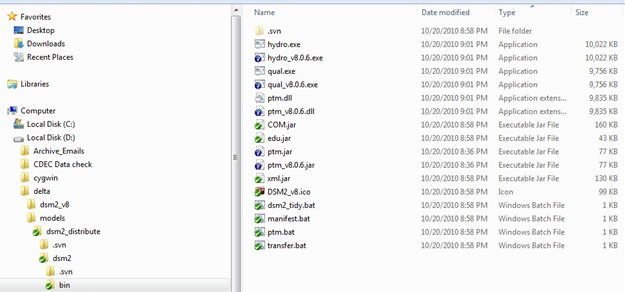

Manually copy hydro.exe, qual.exe, ptm.dll, ptm.jar to the folder
\dsm2_distribute\dsm2\bin
3. Generate packaging script:
a) Check the DSM2 version is correct in the Python script "DSM2setup_Script_Generate.py" in the folder \dsm2_distribute\dsm2\install\
Be aware of the version consistence for the 3 control files mentioned in 'DSM2 Versioning'; if not, correct them and re-compile from 6-4 in the previous section
b) Run this Python script to generate Inno Setup script "DSM2setup_v8.iss".
4. Create DSM2 installation file:
Run "DSM2setup_v8.iss" with Inno Setup Compiler v5.2.3
The installation file named "DSM2setup_8.X.Xrelease.XXXX.exe" will be
created in the same folder, \dsm2_distribute\dsm2\install\
5. Quick-test installer:
Test installation on a clean machine. Run historical hydro, qual_ec and ptm on study templates.
6. Tag and version increment:
Create release tag for both "dsm2" source code on github and "dsm2_distribute" folders on share-folder.
For future usage, immediately increment DSM2 version number (3rd digit to the next odd number) in the following three files:
- \dsm2\src\common\version_generate.py
- \dsm2_distribute\dsm2\install\copy_hydro_qual_ptmDLL_notepad_style.bat
- \dsm2_distribute\dsm2\install\DSM2setup_Script_Generate.py
