CMake Build

Introduction

DSM2 consists of many projects and third party libraries. This has meant running a number of scripts as documented in CMake Build. It has also entailed opening multiple solution files and build libraries by hand. Furthermore, the compiler and visual studio upgrades were slow to adopt due to the cost of breaking changes when upgrading versions. And finally and most importantly, the daunting task of building all these files for a different OS such as linux.

CMake

cmake is a system that generates the build system. In other words cmake does not help in building the libraries and projects but encompasses the high-level, OS and build system independent instructions for generating those systems. Its introduction and tutorial could be found at https://cmake.org/

A first effort at a cmake generated build system is working for VS2015 with the latest intel compiler on Windows. The instructions for this and the files needed have been checked into github master

  • A CmakeLibraryMacro.txt is placed at DSM2 root path, with global macro and environment settings
  • A CmakeLists is placed under each project/sub-subject to govern its compilation.
  • build*.bat is created for DSM2, input_storage, oprule, respectively, to contain the key cmake commands (listed in the following sections).
  • After compilation, the exe/dll are generated under subfolders BUILD\release or BUILD\debug.

DSM2 core project

CMake Instructions
Create a build directory BUILD under dsm2


mkdir BUILD
cd BUILD

First setup path
"C:\Program Files (x86)\IntelSWTools\compilers_and_libraries\windows\bin\compilevars.bat" ia32 vs2015

Next execute for VS2015 the cmake command
cmake -G "Visual Studio 14 2015" ..\src

Finally open the DSM2.sln file in VS 2008 and compile

or compile from command line with this command
cmake --build . --target ALL_BUILD --config Debug
cmake --build . --target ALL_BUILD --config Release

Input Storage and Oprule

The libraries input_storage and oprule are built to support DSM2 core project. (confirm their building success before compile core project)

cd input_storage
mkdir BUILD
cd BUILD
cmake -G "Visual Studio 14 2015" ..\
cmake --build . --target ALL_BUILD --config Debug
cmake --build . --target ALL_BUILD --config Release

cd oprule
mkdir BUILD
cd BUILD
cmake -G "Visual Studio 14 2015" ..\
cmake --build . --target ALL_BUILD --config Debug
cmake --build . --target ALL_BUILD --config Release

Third Party

DSM2 relies on third parties and requires the required libraries below. Usually DSM2 just uses the built-up libraries; however, sometimes (when version/environment changes), the following libraries need re-build. Note DSM2 only requires some specific subsets in these libraries and these specification could be found in CmakeLibraryMacro.txt

boost

Run bootstrap.bat to build b2.exe; then run b2.exe

Note b2.exe is required to run in complete mode (the default minimal mode won't build the required library; run b2 --help for details)

Linux sample for boost build

#use this script to get started with new boost library
#cp this script into new boost library source directory
./bootstrap.sh --with-toolset=intel-linux
./b2 --clean
./b2 -a toolset=intel-linux link=static variant=release --with-filesystem --with-regex --with-system --with-test

Windos sample for boost build

./b2 -a runtime-link=static --with-filesystem --with-regex --with-system --with-test

HDF5

Go to CMake-hdf5-1.8.20 folder to run batch of the relevant version, e.g. build-VS2015-32.bat, which builds HDF5-1.8.20-win32.zip

Unzip it and place it under third_party folder.

To build the static libraries which is what is needed with DSM2 static build see this HDF5 CMake Static Build

heclib

Build heclib\windows_sources\windows_build_MT_default_settings.bat

  • MT is for static version as we needed (MD for dynamic)
  • Make sure setting compiler path as the required version (as exemplified in core project)

For using Visual Studio 2017

Install Visual Studio 2017:

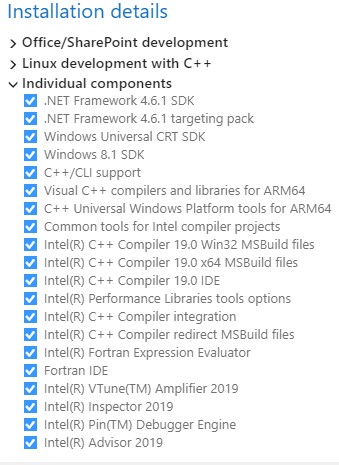

In addition to the standard Visual Studio 2017 installation, download individual components from the VS2017 installer.  The individual components needed are:

Run the installer, and click on Modify, then Individual components tab, and check the components, finally click on Modify.

Change the lines in build_dsm2_vs2015_32b.bat:

call "C:\Program Files (x86)\IntelSWTools\compilers_and_libraries\windows\bin\compilevars.bat" ia32 vs2015

to

call "C:\Program Files (x86)\IntelSWTools\compilers_and_libraries_2019\windows\bin\compilervars.bat" ia32 vs2017

cmake -G "Visual Studio 14 2015" ..\src

to

cmake -G "Visual Studio 15 2017" ..\src

Rerun the build scripts as instructed above.
