Scripts and input files

Folder Structure

Most preprocess scripts are originally located at ${DSM2}/scripts/, while it also needs DSM2 config file and input timeseries (from CalSIM) to run.

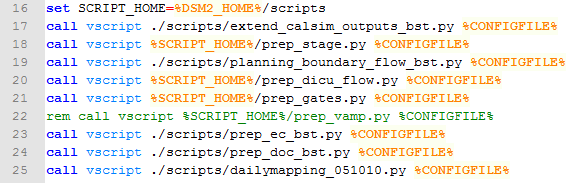

Fig. Sample batch preprocess from CalSIM II to DSM2

Some key functions are explained below:

  • config file usually defines the time window, CALSIMNAME, DSM2MODIFIER, which need to be consistent with the scripts and timeseries files.
  • planning_boundary_flow contains method 'smooth_flow' to 'tension spline' boundaries Sac and Vernalis from monthly to daily-interval data.
  • DICU are directly transferred as monthly-interval data.
  • prep_ec generate Martinez EC from its astro-planning stage and NDO (modified from G-model and has a newly calibrated version). Refer to Martinez EC Generator for its introduction and updates.

To run

type prepro*.bat config*.inp at the scenario path in command window

*usually we start preprocess earlier (like 1 month) than hydro + qual

CWF preprocess version in DSM2 v806

CH2M helped creating an updated version for project 'California Water Fix' (CWF), whose existing condition (EST)  and No Action Alternative (NAA) are widely used as templates for DSM2 planning study.

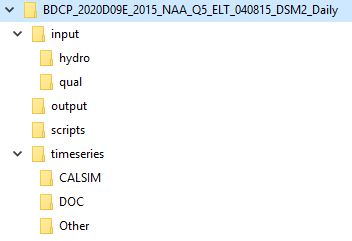

Figure. Sample directory of CWF scenario for DSM2 planning modeling

Compared to the original scripts package, CWF version has

  • a sub-folder 'scripts' under scenario. It contains updated scripts to replace those under ${DSM2}/scripts/.
  • a sub-folder 'input' under scenario. It contains updated hydro and qual grids.

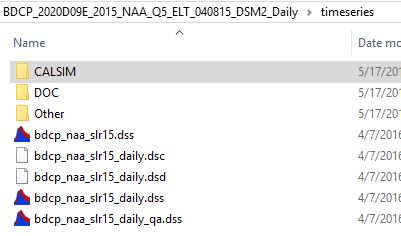

  • a sub-folder 'timeseries' under scenario. It contains updated DSM2 input files (*daily.dss for boundaries, *.dss for Martinez stage, DICU, oprule, QUAL, *qa.dss for QAQC)
  • the above input files are generated from its 'CALSIM' subfolder, with *DV.dss (CalSIM outputs) and *SV.dss (CalSIM inputs) required by the current CalSIM II preprocess (CalSIM 3 plans to keep only *DV.dss)

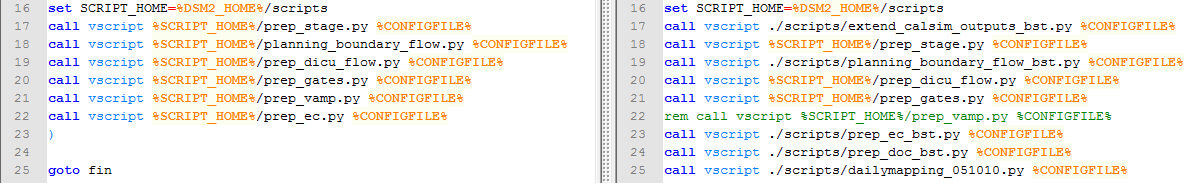

Figure. CWF version's batch preprocess from CalSIM II to DSM2

More details in the scripts:

  • planning_boundary_flow contains method 'smooth_flow' to 'tension spline' boundaries Sac and Vernalis from monthly to daily-interval data.
  • CWF dailymapping processes all boundaries and source flows to daily-interval data.
  • prep_ec has updated changes with sea level rise adjustment
  • Vernalis Adaptive Management Plan (VAMP) of the original scripts is not active anymore
  • Source flows and intakes are added/modified
  • Method 'daily mapping' to process all boundaries/source inputs to daily-interval data

Attachments:

prep_doc_bst.py (application/octet-stream)
planning_ec_mtz_bst.py (application/octet-stream)
planning_boundary_flow_bst.py (application/octet-stream)
extend_calsim_outputs_bst.py (application/octet-stream)
expand_seasonal_bst.py (application/octet-stream)
dailymapping_051010.py (application/octet-stream)
prep_ec_bst.py (application/octet-stream)
prepro_BST_Existing.bat (application/octet-stream)
