DSM2 Seems to indicate missing irregular (gate position) data

Problem: Hydro displays the following.

Error in reading time-varying data:
Current time is 01SEP2001 2400; earliest data time for
/HIST+GATE/MTZSL/BOATLOCK_OP//IR-DECADE/DWR-ESO/
is

Brad Tom Related to Jira issue. I think we should open an issue there as you are doing the practical fix for this known issue (smile)
Key Summary T Created Updated Due Assignee Reporter P Status Resolution
DSM2-106 Timeseries interpolation [<img
src="http://msb-jira/secure/viewavatar?size=xsmall&avatarId=10303&avatarType=issuetype"
class="icon" alt="Bug" />](http://msb-jira/browse/DSM2-106?src=confmacro) Nov 30, 2011 Jan 03, 2022 Nicky Sandhu Ines Ferreira <img src="http://msb-jira/images/icons/priorities/medium.svg"
class="icon" alt="Medium" /> Resolved Won't Do

1 issue

But there are data values in this time series with dates before the current date.

The problem is: When using an IR-DECADE dss path, there must be a value with a timestamp that is at the beginning of the current decade. In this case, a record is required that has a timestamp of 31DEC2000 2400.

To fix this:

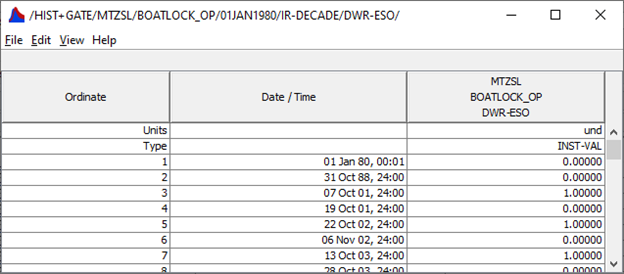

  1. Tabulate the data in HEC-DssVue. There is no beginning of decade timestamp.

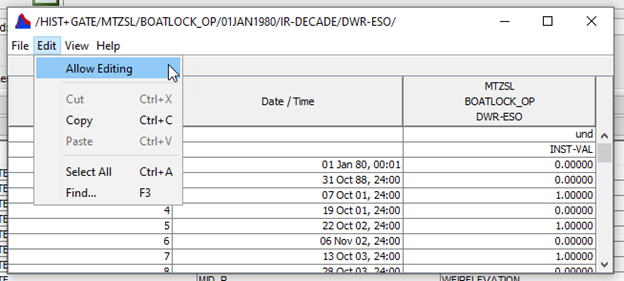

2. Turn on "Allow Editing"

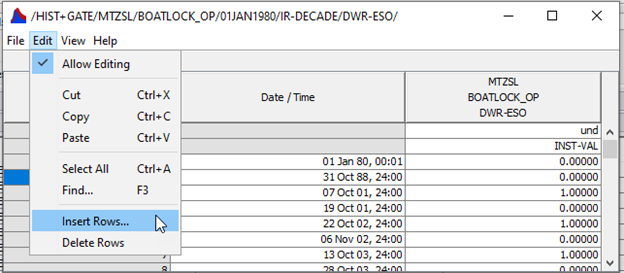

3. Select the row before the end of the previous decade, and select "Insert Rows":

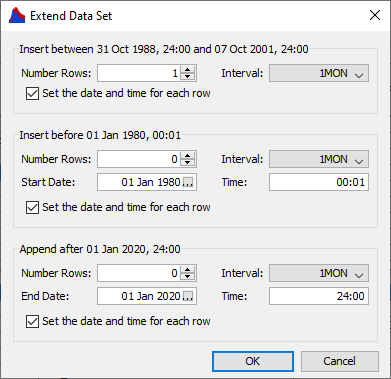

4. Change "Number Rows" to 1.

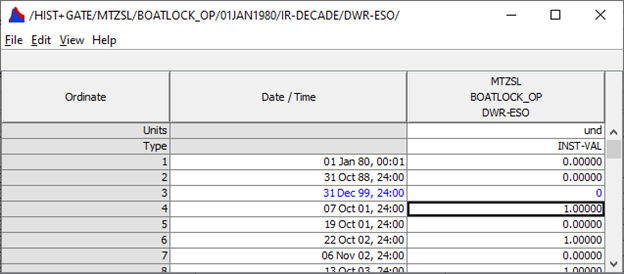

5.Enter the timestamp that is needed, with a value equal to the value in the previous record:

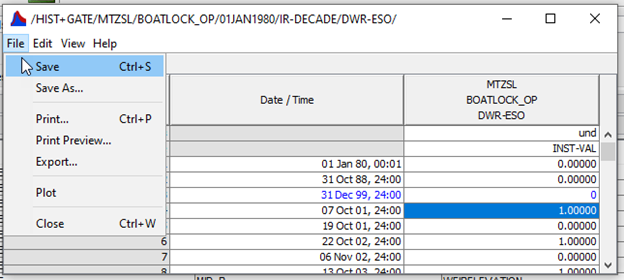

6. Save the data:
